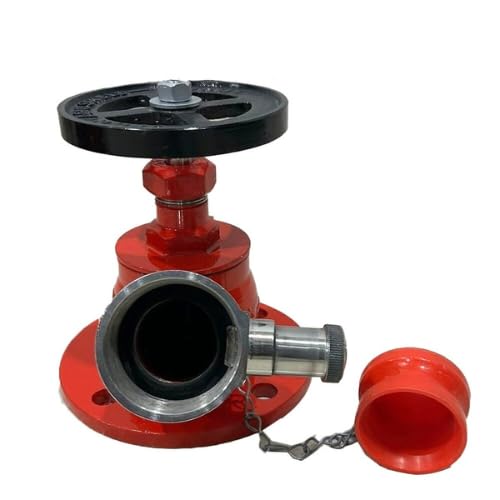

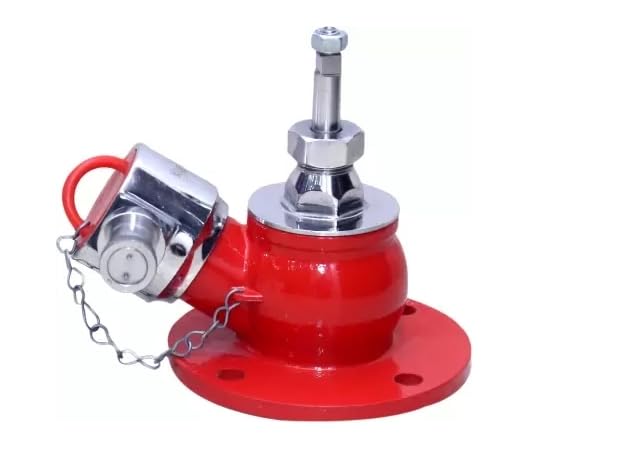

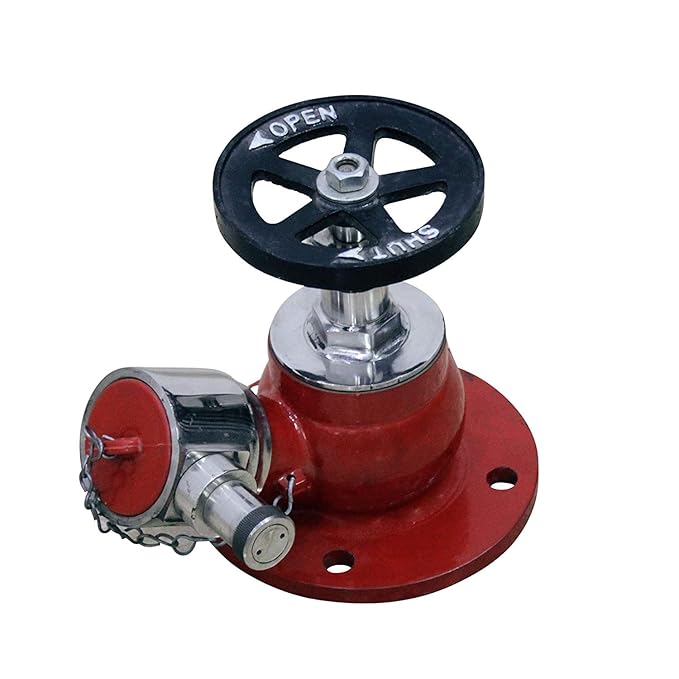

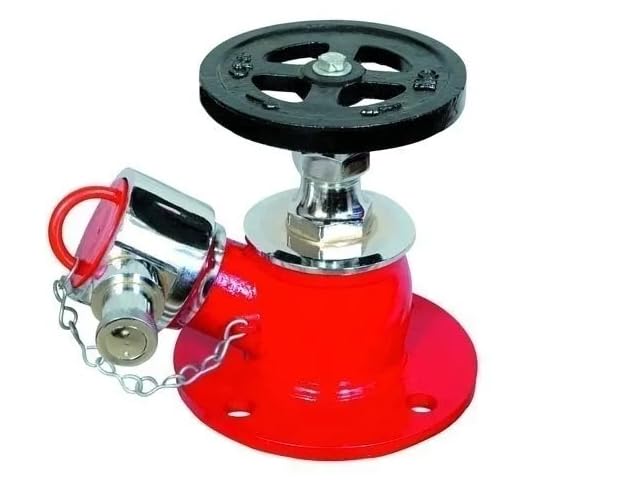

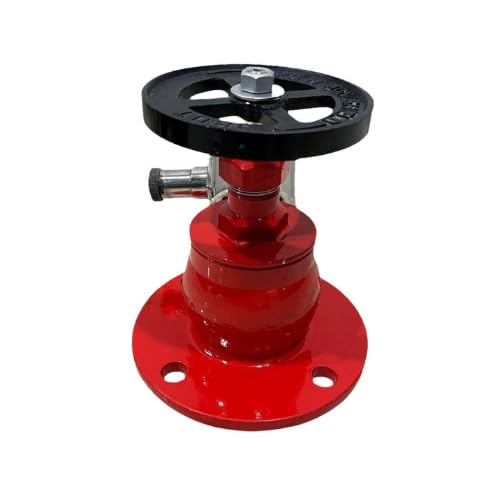

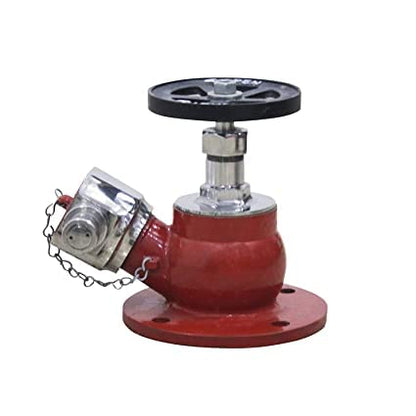

Generic Valve No Modifier 63MM SINGLE HEAD HYDRANT LANDING VALVE ISI MARK WITH SS 2302 COUPLING
Rs. 5,699.40
Regular price
Rs. 5,699.40
Sale price
Rs. 5,699.40
Regular price
Unit price
per
Couldn't load pickup availability
Low stock! Only 1 left
Specifications
| Accessories | PVC blank cap with chain |
| Coupling Type | SS 2302 Coupling |
| Flange OD | 200mm |
| Flange PCD | 160mm |
| Flow Rate | 900 LPM at 7 kgf/cm² |
| Hydraulic Test Pressure | 21 kgf/cm² (Body) |
| Inlet Size | 75mm to 80mm Flanged |
| Material | Stainless Steel (SS304) |
| Outlet Size | 63mm |
| Outlet Type | Female Instantaneous |
| Pattern | Oblique |
| Seat Test Pressure | 14 kgf/cm² |
| Standard | IS 5290 (ISI Mark) |
| Type | Single Headed Landing Valve |
| Working Pressure | 15 kgf/cm² Maximum |
