Specifications
| Ambient temperature | -10°C ... 80°C |
| Cleanroom suitability | Class 4 (ISO 14644-1) |
| Colour of release ring | Blue |
| Corrosion resistance class CRC | 1 - Low corrosion stress |

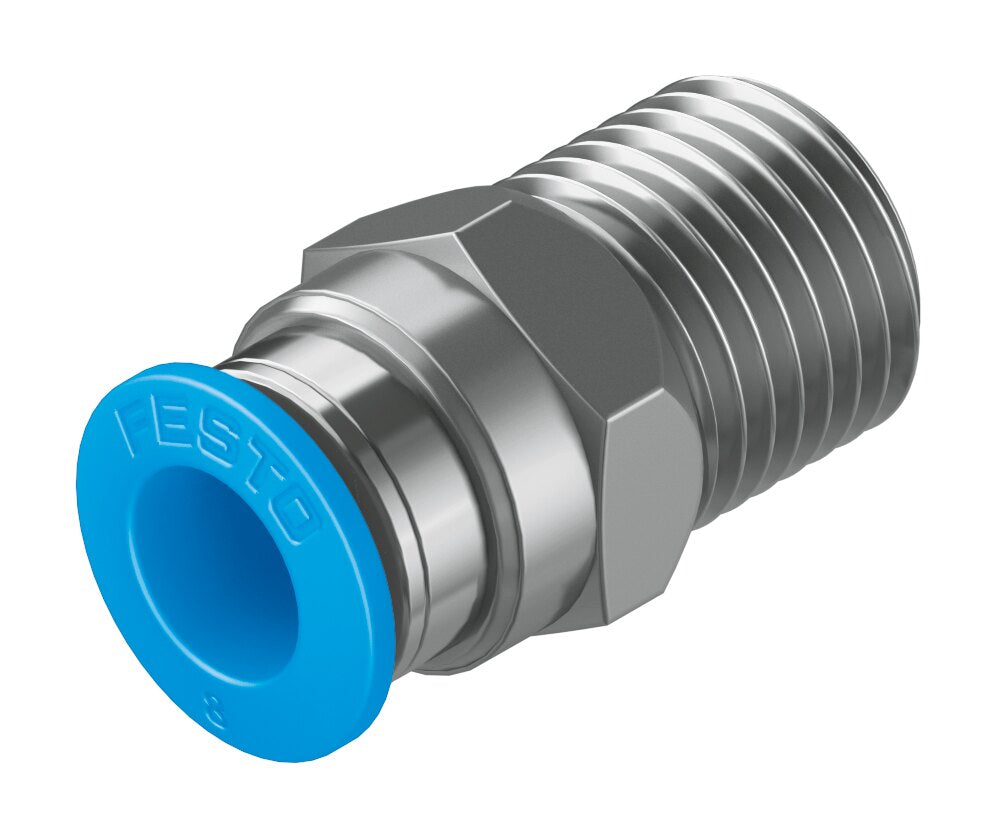

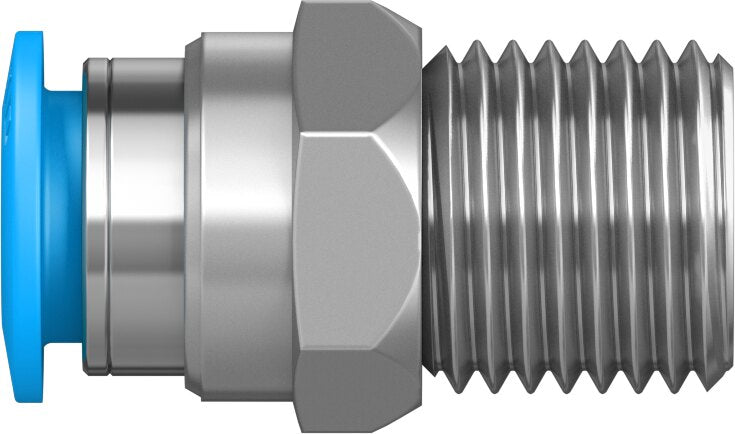

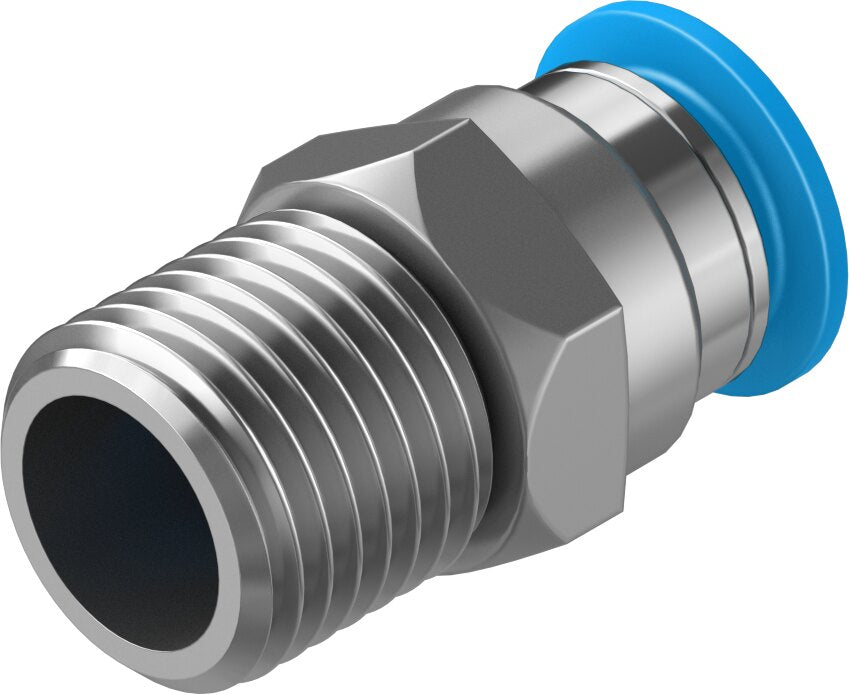

| Design (1) | Straight design |
| Design (2) | Push-pull principle |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Material housing | Brass, nickel-plated |
| Material release ring | POM |
| Material tubing clamp component | High-alloy stainless steel |
| Material tubing seal | NBR |
| Mounting position | Optional |
| Nominal size | 7 mm |
| Note on materials | RoHS-compliant |
| Note on operating pressure | Water: max. 0.6 MPa at max. 50°C |
| Note on operating/pilot medium | Lubricated operation possible |
| Operating medium | Compressed air (ISO 8573-1:2010 [7:-:-]), Water (ice-free) |
| Operating pressure range (MPa) | -0.095 ... 0.6 |
| Operating pressure range (bar) | -0.95 ... 6 |
| Operating pressure range (psi) | -13.775 ... 87 |
| Port 1 | Male thread R1/4 |
| Port 2 | For tubing OD 8 mm |
| Product weight | 14 g |
| Size | Standard |
| Size of pack | 50.0 |
| Temp-dependent pressure (MPa) | -0.095 ... 1.4 |
| Temp-dependent pressure (bar) | -0.95 ... 14 |
| Temp-dependent pressure (psi) | -13.775 ... 203 |
| Type of mounting | External hexagon, size 14 mm |
| Type of seal on screwed plug | Coating |
