Festo

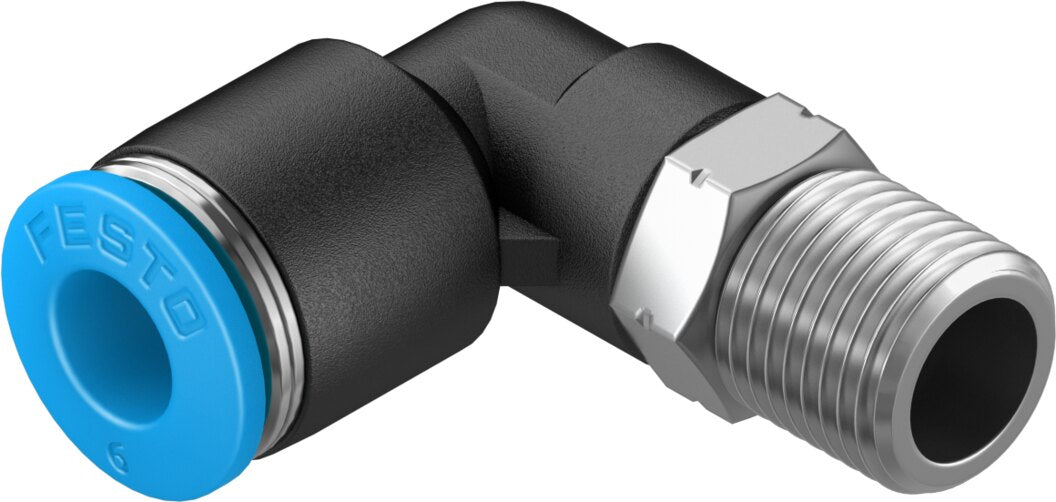

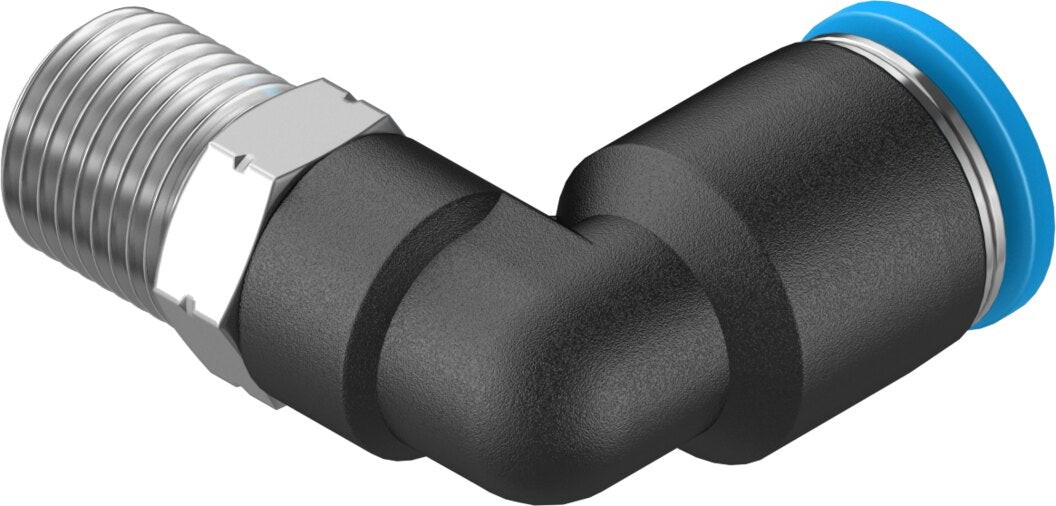

Festo Push In Fitting L Type MODEL NO QSL-1/8-6 153046

Rs. 111.27

Skip to product information
1 of 2

Regular price Rs. 111.27
Sale price Rs. 111.27 Regular price

Awaiting stock, shipping soon
Specifications
Ambient temperature -10°C ... 80°C
Cleanroom suitability Class 4 (ISO 14644-1)
Colour of release ring Blue
Corrosion resistance class CRC 1 - Low corrosion stress
Design (1) L-shshape
Design (2) Push-pull principle
LABS (PWIS) conformity VDMA24364-B1/B2-L
Material housing PBT
Material release ring POM
Material screwed plug Nickel-plated brass
Material tubing clamp component High-alloy stainless steel
Material tubing seal NBR
Mounting position Optional
Nominal size 4.2 mm
Note on materials RoHS-compliant
Note on operating pressure Water: max. 0.6 MPa at max. 50°C
Note on operating/pilot medium Lubricated operation possible
Operating medium Compressed air (ISO 8573-1:2010 [7:-:-]), Water (ice-free)
Operating pressure range (MPa) -0.095 ... 0.6
Operating pressure range (bar) -0.95 ... 6
Operating pressure range (psi) -13.775 ... 87
Port 1 Male thread R1/8
Port 2 For tubing OD 6 mm
Product weight 11 g
Size Standard
Size of pack 10.0
Temp-dependent pressure (MPa) -0.095 ... 1.4
Temp-dependent pressure (bar) -0.95 ... 14
Temp-dependent pressure (psi) -13.775 ... 203
Type of mounting External hexagon, size 10 mm
Type of seal on screwed plug Coating



Festo Push In Fitting L Type MODEL NO QSL-1/8-6 153046

Rs. 111.27
